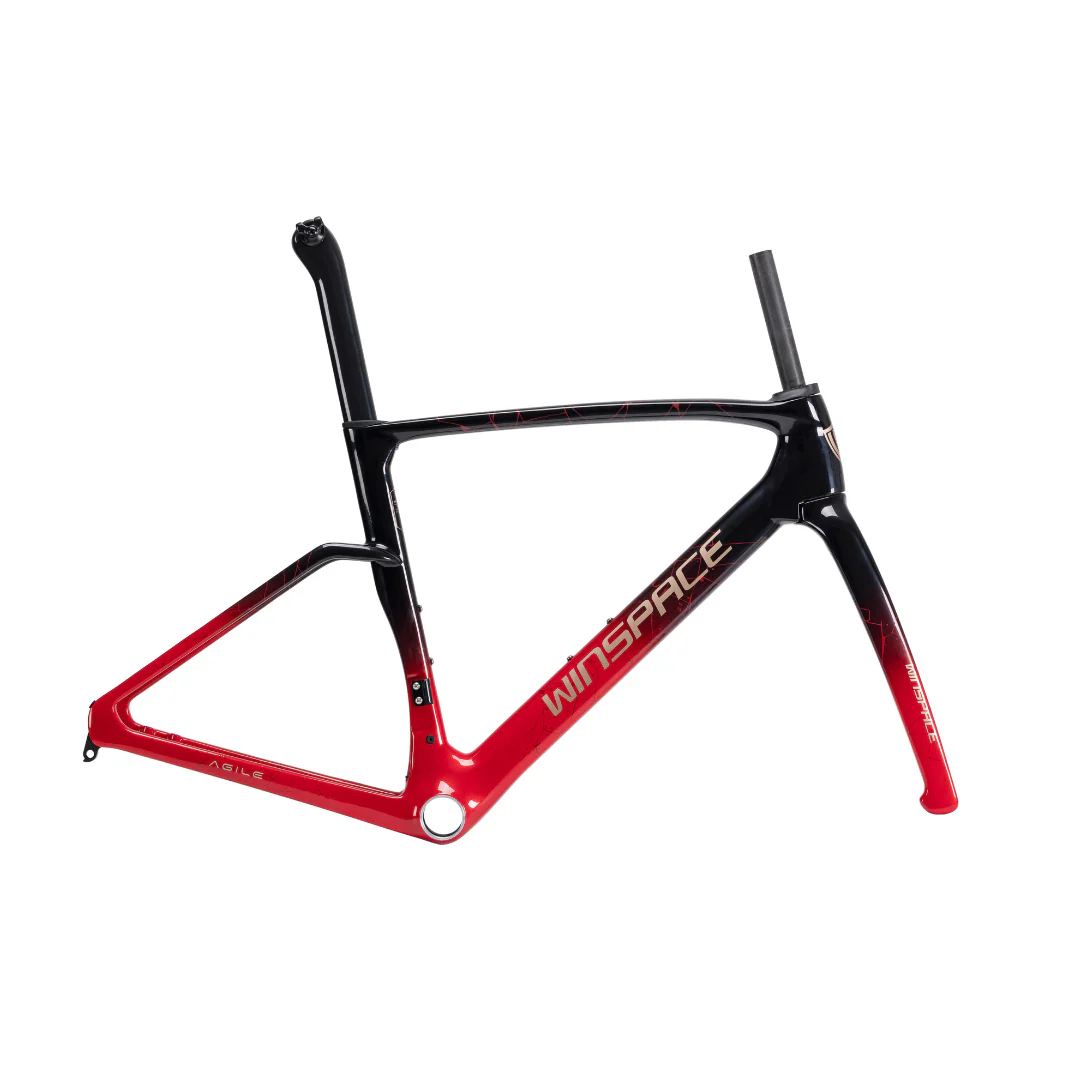

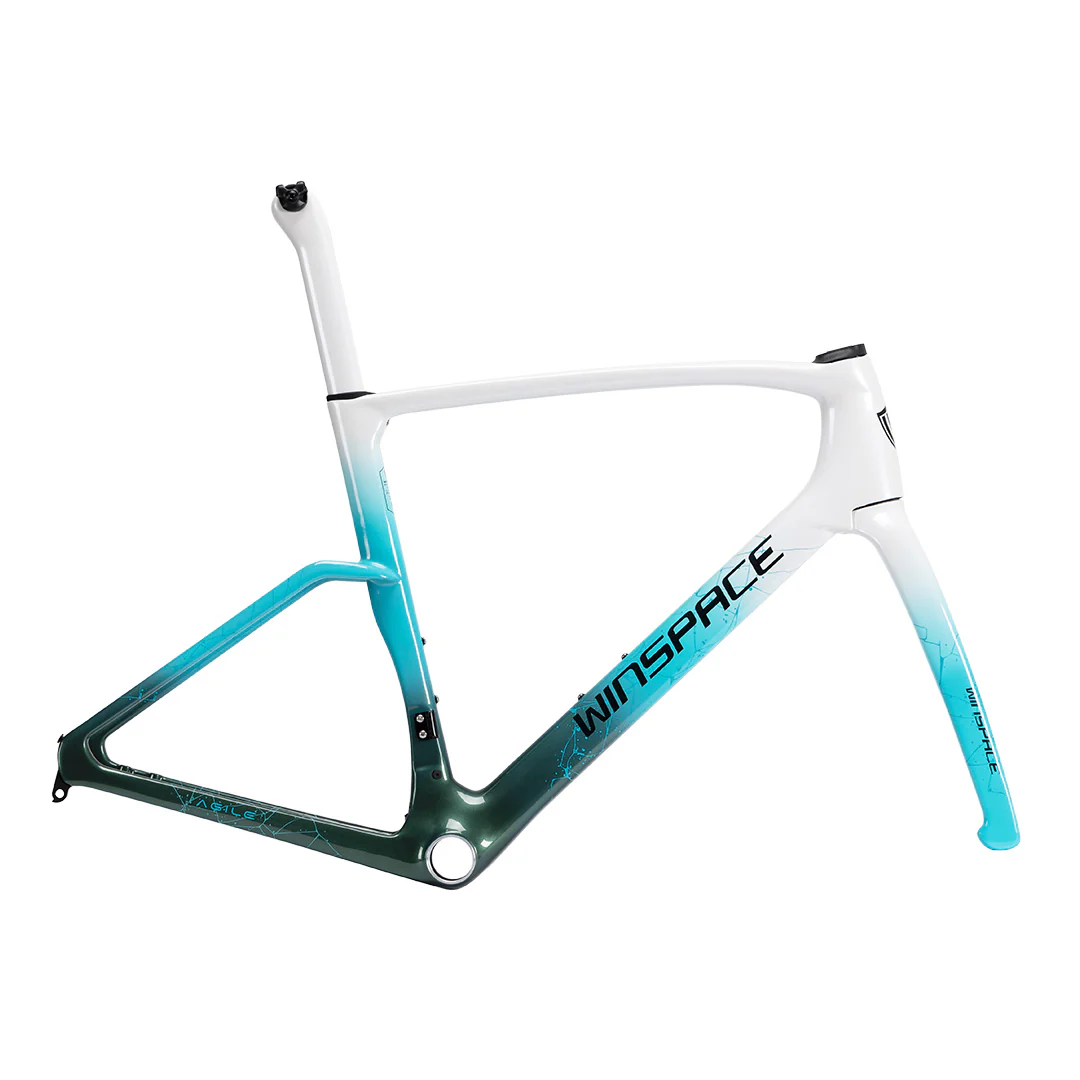

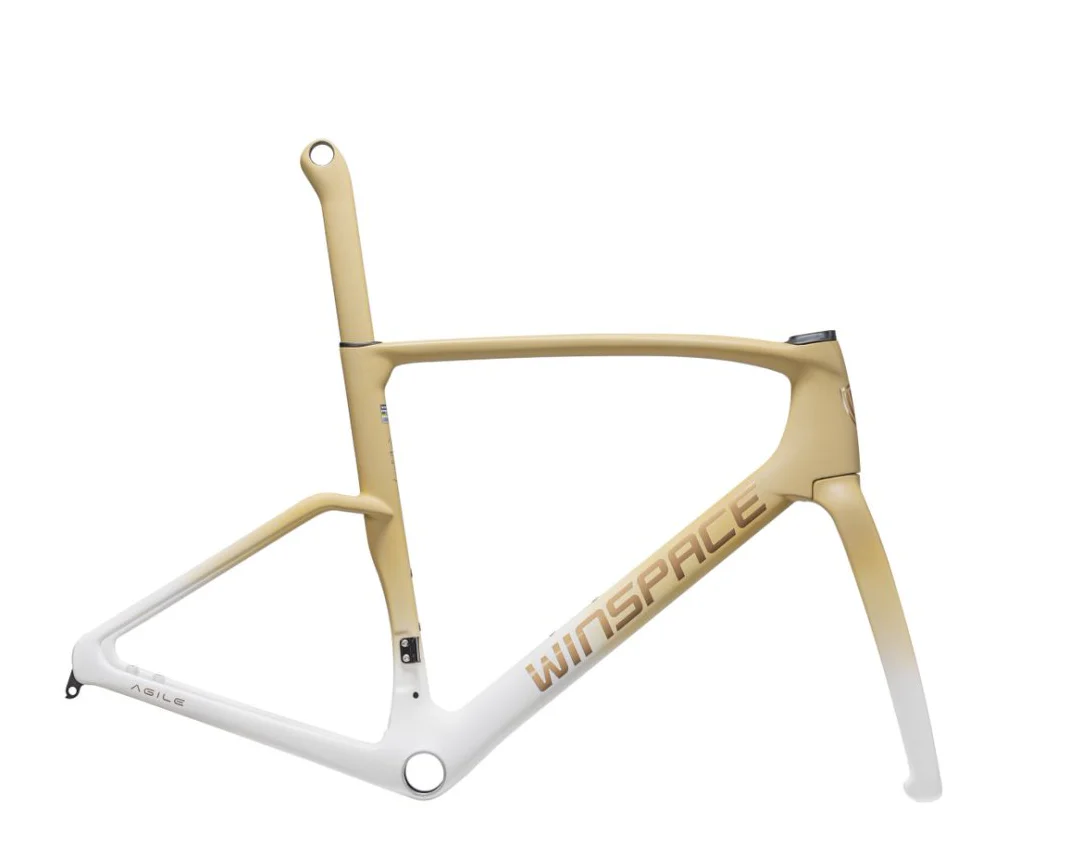

Winspace Agile

R34450,00 incl. VAT

Agile is our first all-round high-performance road bike frame, true to its name, it promises an extraordinary handling experience and an exceptional ride quality.

Horizontal Angled T-Tail
Support for Up to 32mm Tire Clearance
T47 Bottom Bracket
Responsive Trail Value Setting
ACR Headset
T800+T1000 Carbon Fiber EPS+LATEX Molding Process
Aggressive Geometry

* Raw carbon option now available for custom paint. Regardless of the form, please make sure the ‘Winspace’ logo is prominently displayed on the frame, and no other brand names are visible.

Geometry

Categories: ALL PRODUCTS, FRAMES

Description

Introduction

Those familiar with us know that we stand out in our respective fields with the ultralight SLC and the aerodynamic T1550. But what if there’s something that bridges the gap between the two? Something that’s both aerodynamic and lightweight. While it’s said that you can’t have the best of both worlds, our Agile model begs to differ. It offers superb handling and is fully UCI certified, currently available only in a disc brake version.

Specifications

Model name: Agile
Sizes: XS (410mm), S (440mm), M (470mm), L (510mm), XL (550mm)
Headtube: NO.55R 1.5″/ACR/STD (headset included.)
BB:T47-85.5
Seatpost: Aero Seat Post (Included.)
Brake: Flat mount disc brake
Front derailleur: Brazed on
Derailleur Routing: Mechanical / Di2 /Campy EPS / SRAM eTAP
Tire clearance: Max. 700C*32C, 700C*28C for M size
Wheel Axle: 12mm through axle F100mm R142mm
Carbon fiber: T800+T1000
Weight: frame 850+/-35g for M size (Unpainted)
UCI approved
Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Direct Mount Derailleur Hanger
Warranty: Limited 3yr warranty on the frameset

Features

Horizontal Angled T-Tail

With the T-tail design, we’ve tweaked the aerodynamic profile of our T series slightly. The horizontal extension maximizes aerodynamic efficiency, while the angled tail-end creates a sweet spot, perfectly balancing aerodynamics and riding comfort.

T800+T1000 Carbon Fiber EPS+LATEX Molding Process

The Agile frameset steps up the game with a T800+T1000 carbon fiber EPS+LATEX molding process, elevating stability and maintaining a remarkably lightweight structure. This advanced technique ensures the frame not only meets but exceeds rigidity standards, promising durability and longevity. The strategic blend of T800 and T1000 carbon fibers significantly enhances the bike’s structural integrity and strength, empowering you to ride with unmatched speed and efficiency.

Enhanced Compatibility and Ultimate Control.

Agile caters to diverse cycling needs with its T47 bottom bracket compatibility and the ability to support tire clearance up to 32mm, offering a broad spectrum of customization and adaptability to different scenarios. The crafted trail value endows it with superior handling limits, ensuring immediate steering and acceleration, fostering a harmonious unity between rider and bike
