Introduction

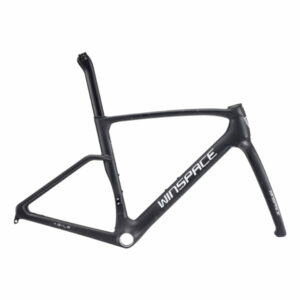

The C5, as our second All-round frame model for the year 2024, further caters to a diverse range of cycling needs. If Agile is akin to a funky guy, then C5 is more like a gentleman. Its one-piece molding process, enhanced by the addition of carbon fiber, greatly boosts its stability and reliability. The aerodynamic design ensures that it also possesses excellent performance.

Specifications

Model name: C5
Sizes: XS (435mm), S (465mm), M (485mm), L (515mm), XL (535mm)
Headtube: NO.55R 1.5″/ACR/STD (headset included.)
BB:BB86
Seatpost: Aero Seat Post (Included.)
Brake: Flat mount disc brake
Front derailleur: Brazed on
Derailleur Routing: Mechanical / Di2 /Campy EPS / SRAM eTAP
Tire clearance: Max. 700C*32C
Wheel Axle: 12mm through axle F100mm R142mm
Carbon fiber: T700+T800
Weight: Frame 1010+/-30g for M size (Unpainted)
UCI approved
Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Direct Mount Derailleur Hanger
Warranty: Limited 3yr warranty on the frameset

Features

Angled T-Tail

Similar to the Agile, the C5’s angled seatstays design and extended chainstays significantly filter out vibrations transmitted from the rear wheel. Meaning the riding experience isn’t as bumpy as our T series, ensuring an optimal balance of aerodynamics with supreme comfort and endurance. This design choice makes it well-suited for long rides where comfort is as crucial as performance.

Less Aggressive Geometry Design

The frame tuning of the C5 leans towards stability. Its extended chainstay length and increased trail value give it a higher margin for error in handling, significantly enhancing the riding stability and comfort. This design choice makes the C5 ideal for riders who prioritize a smooth and forgiving ride.

One-Piece Molding

The C5’s one-piece molding and casting technology endows the frame with unmatched toughness and a seamless appearance. The C5 is currently the only model on sale utilizing this advanced technique, setting it apart in both durability and design.
